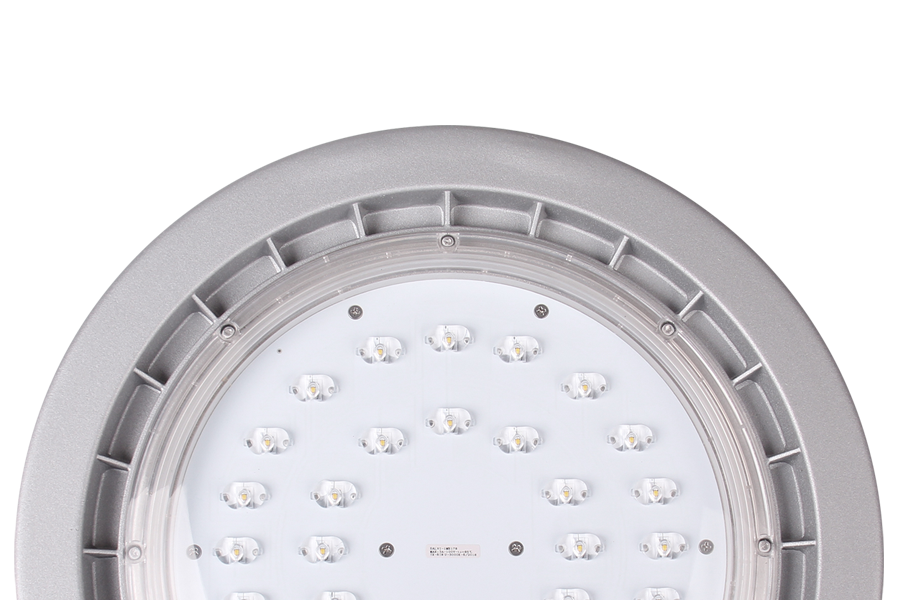

Snap, the perfect substitute

LED module with high dissipation capacity, circular format for upgrading existing luminaires to LED technology. Economical solution with superior light quality and significant energy savings.

Configure your Snap A
Snap luminaire
Snap luminaire
Electronic efficiency > 90%.
IP66 optical assembly for non-waterproof luminaires. | IK09
Fixing adapted to the existing non-watertight luminaire. Mounts watertight components. Salvi's Technical Office carries out the adaptation project and the necessary tests in each case.

A product that won't leave you indifferent

Ideal for upgrading discharge luminaires to LED technology in pedestrian areas, residential areas, parks and gardens, car parks, large areas, sports and industrial spaces.

Combine it with the best pole
Roís Health Area

Roís de Corella Health Area

Plaza Madalena Durango

Madalena Square, Durango

el ventorro park

El Ventorro Park, Huétor Tájar.

ICE S TOP LUMINAIRE

ICE S TOP

Their specifications are the key

Here we show you the key aspects that allow it to adapt to any project.

monoblock white | Salvi Lighting Barcelona

Monobloc lenses

Ensure better photometric accuracy

aluminium white keypoint | Salvi Lighting Barcelona

Aluminium

anti-corrosive with a copper content of less than 0.1%.

white keypoint painting | Salvi Lighting Barcelona

Painting

The paint complies with EN 12944 C4 High Durability

white keypoint reflector | Salvi Lighting Barcelona

Reflector

Improves efficiency, uniformity and light intrusion

closing white keypoint | Salvi Lighting Barcelona

Locking system

for tool-free maintenance

white keypoint threads | Salvi Lighting Barcelona

Threads

stainless steel

vida white keypoint | Salvi Lighting Barcelona

Product life

based on the environmental conditions of the project

humidity white keypoint | Salvi Lighting Barcelona

Valve

pressure compensator. Eliminates interior humidity

white keypoint space | Salvi Lighting Barcelona

Space

independent for electronics

silicone white keypoint | Salvi Lighting Barcelona

Silicone gasket

Sealing gaskets made of resistant silicone

white keypoint white keypoint guarantee | Salvi Lighting Barcelona

Guarantee

The product is adapted to the needs of the project

ultra-transparent white keypoint | Salvi Lighting Barcelona

Glass

ultra-transparent. Improves efficiency by up to 10%.

evolution white keypoint | Salvi Lighting Barcelona

Developments

The luminaire adapts to technological change

white keypoint socket | Salvi Lighting Barcelona

Disconnector

of current. Protects the installer

smartec white keypoint | Salvi Lighting Barcelona

Smartec

Luminaire pre-equipped for Smartec remote control

circular white keypoints | Salvi Lighting Barcelona

Circular distribution

Optimises heat dissipation

white keypoint rod | Salvi Lighting Barcelona

Telescopic rod

Risk-free maintenance

anti-reflective white keypoint | Salvi Lighting Barcelona

Anti-reflective

Anti-reflection treatment. Improves efficiency by up to 5%.

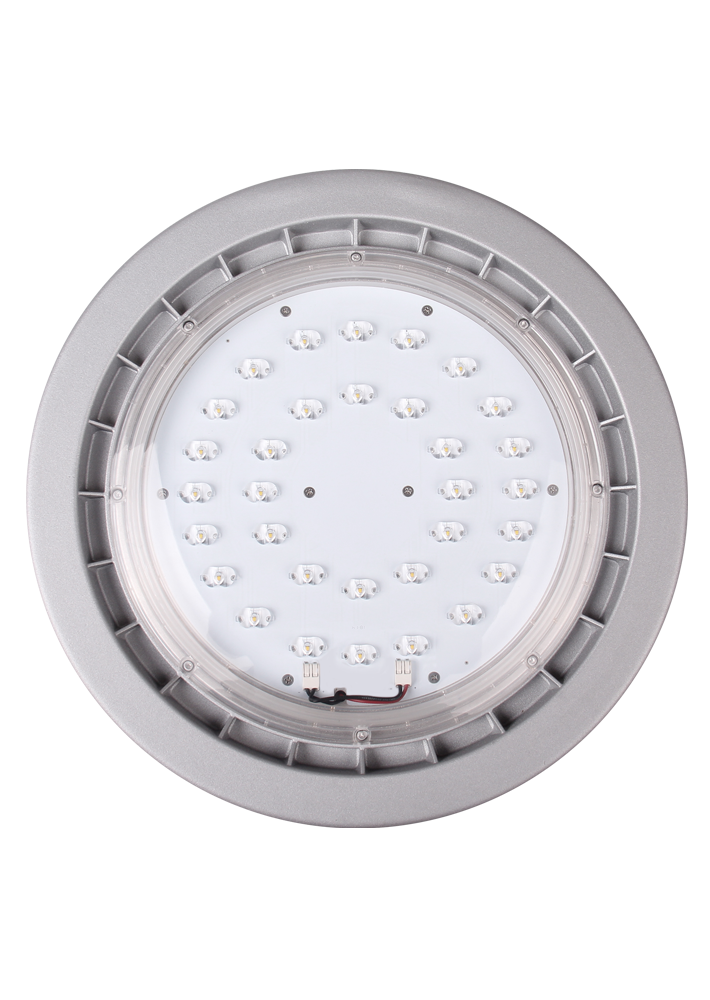

Snap luminaire

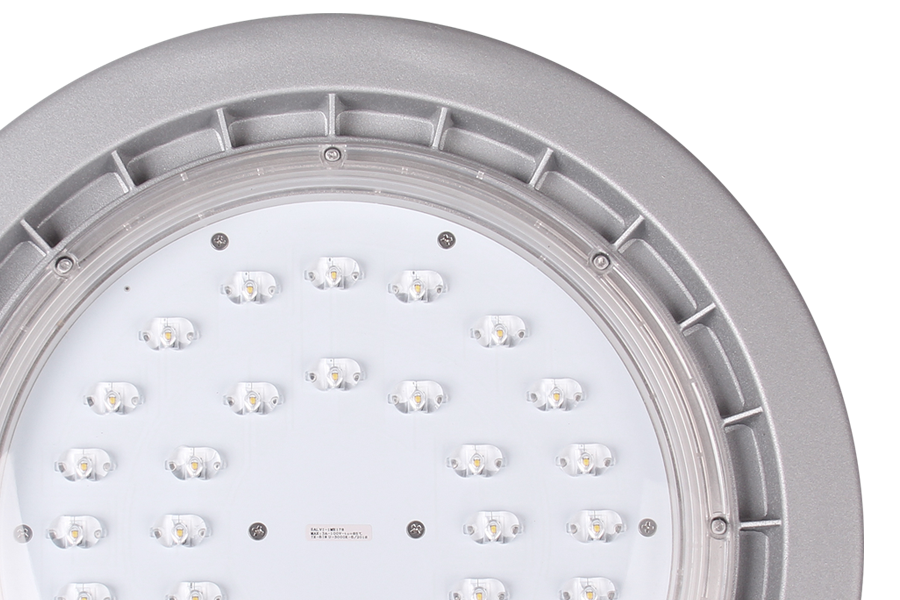

Some technical details

Module consisting of cast aluminium body EN AC 44300 with low copper content for non-watertight luminaires (below IP65). Access to the equipment according to the adaptation solution for each luminaire.

  • For installation from 4 to 12m high.
  • Characteristic dimensions: 60 x Ø325 mm.
  • Maximum power 125W
  • Maximum flux 19700lm.
  • AC voltage 220V-240V ~ 50/60Hz.
  • Approx. weight: 2,3Kg.
  • IP66 optical assembly for non-watertight luminaires.
  • IK09
  • FHS < 0.1% (Cierre lenticular y vidrio plano).
  • CRI minimum 70.
  • Class I / Class II optional.
  • Lifetime : L90B10 > 100,000 h (depending on LED type and configuration).

The solution to take control

Smartec is a scalable solution with which you can quickly and efficiently control and manage the status of your luminaires from any device.
Because public lighting has evolved in parallel with technological and urban development, and we want to offer you the best results to keep you up to date at all times.
Because together and together with Smartec, you will have the complete solution.
Discover all that Smartec can offer you
smartec laptop | Salvi Lighting Barcelona

Optics is everything

Set of independent lenses of our own design in optical PMMA with an efficiency of up to 93%. Optional rear flux recuperating reflector in injected and aluminised PMMA with a high reflectivity index (95%). The wide range of lenses and reflectors available enables all photometric requirements to be optimally met.

Successful projects

We show you the results of the luminaire so that you have no more doubts, and so that we can start a new journey together.

Supplementary information

Download all the additional information we provide to answer any questions you may have.
Technical specifications
BIM
Instructions
Ldts
Plans pdf
Drawings dwg

It's your moment!

Configure your luminaire to suit your needs and create a successful project.
